12_Rear_panel_underside
Image information
Description

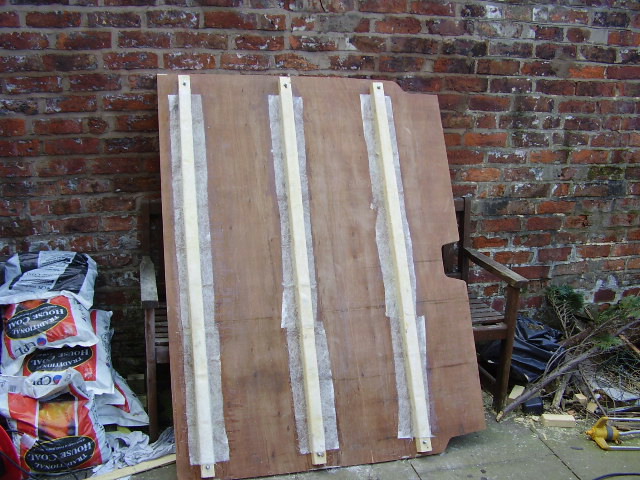

Here's the rear panel removed from the van
for proper fixing of the struts on the underside. As well as the
coachbolts at each end and the screws at intervals along the struts, the
struts are bonded to the ply panels with epoxy resin.
