11_Template_for_marking_screw_holes
Image information
Description

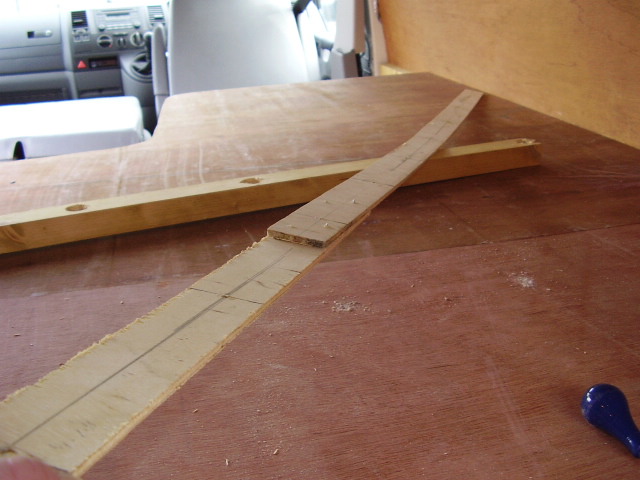

This is a long strip of ply with positions
for screw holes marked and drilled. This was used to ensure the holes
drilled down through the panels (for fixing the struts underneath) were
correctly positioned. The struts were fixed at each end with 70mm M8
coach bolts, with woodscrews used at intervals across the panels.
